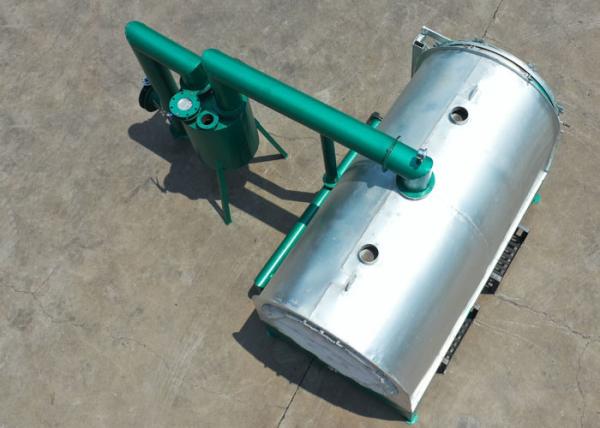

High Capacity Rice Husk Briquette Hard Wood Charcoal Self-Ignite Carbonization Oven
Introduction High Capacity Rice Husk Briquette Hard Wood Charcoal Self-Ignite Carbonization Oven:
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
Technical parameters of High Capacity Rice Husk Briquette Hard Wood Charcoal Self-Ignite Carbonization Oven
| model | 120 | 170a | 170b | 190 |
| capacity | 2T/24h | 4T/24h | 7T/24h | 10T/24h |
| dimension | 2.86*1.6*2.1m | 2.85*2.1*2.1m | 4.60*2.1*2.1m | 5.5*2.2*2.2m |
| weight | 1.68T | 3T | 3.5T | 6.8T |
| inner pot diameter | 1.2m | 1.7m | 1.7m | 1.9m |
| inner pot length | 2.6m | 2.2m | 4.4m | 5.3m
|
Advantage of High Capacity Rice Husk Briquette Hard Wood Charcoal Self-Ignite Carbonization Oven :
1. Due to its design principle with two layers,one is the cooling layer, another is the heat preservation layer, so can reduce its carbonization time.
2. It can use different material as heating source.Such as the Firewood/coal gas/ natural gas/liquefied gas/Combustible gas(produced during the carbonized process).
3. Using anaerobic coking and combustible gas recycling technology.
4. Every step from raw materials to production process will be monitored by the engineer, equipment debugging the final before delivery.With engineer and boss signature before shipment ensure the reliability of the technology, has the practicability of products.
5. Smoke purification treatment :Water and activated carbon filtration purification gas.
Product Application of High Capacity Rice Husk Briquette Hard Wood Charcoal Self-Ignite Carbonization Oven :
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And
the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection
performance.
To improve the design of the charcoal carbonization furnace, in order to prevent gas leakage, the oven door with graphite packing seal, greatly enhancing the effect of carbonization
In the carbonization process ,can produce combustible gas,can recycle these gas.These gas delivery to the white tank through No.1 pipeline,then open the valve of the No.2 pipeline, these gas can reach to the bottom of the furnace through the No.2 pipeline.At the No.4 valve, you can be connected to a pipeline at the No.4 valve, so that can use the extra gas,these gas can cooking, burnning boiler etc.So can save some cost, it is energy saving.
This is shunt tank, at the Nbottom(NO.5) can collect the wood tar.
